Bits and Pieces which Completes Your Electrical Panel





You should have a little information about the Electrical distribution board sitting in your garage or storage space. With this little information, you will be able to troubleshoot minor problems. You will also be able to detect defects that may turn into huge electrical hazards if went unnoticed.

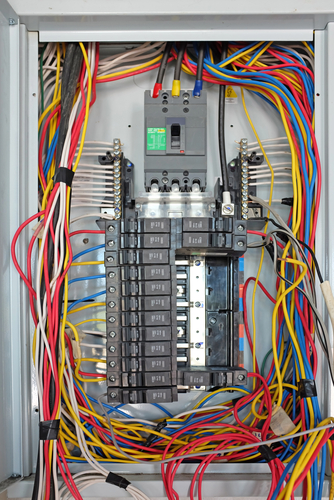

Components of Electrical Panel




There are three components that come together for the complete formation of your home’s electric distribution panel. These are necessary in order to make sure that the electricity is making it into your home. These components ensure your safety by supplying the appropriate amount of electricity flow to your appliances.
Main Breakers

It is important that the flow of electricity in your home is limited, if not then you may face electrical hazards as your wires may get fried or a fire may start. It can also cause damage to your expensive electrical appliances. Through the power lines outside your house circuit breakers limit the supply of current flowing into your home. Its primary purpose is to ensure that your home or business is supplied with a constrained amount of electricity. Main breakers are the huge double pole breakers that are a very crucial part of your distribution panel board as they control the power in your home.
Circuit Breaker





A circuit breaker is an automated mechanical switch crafted for guarding an electrical circuit against the electrical hazards like excess current, overload or short circuit. The modern circuit breaker deals with huge power networks and numerous electrical appliances. The circuit breaker consists of two contacts, fixed and moving contacts. When the circuit breaker is ON, mechanical pressure is applied to the moving contacts due to which the two contacts connect physically. These are used to dominate, master and monitor the electrical panel. This mechanical switch is designed to de-energize the circuit while allowing them to work smoothly without any faults.
Busbar

Busbar is accountable for the transfer of electric power from the meters to the actual circuits. Electric meters transfer the power to the two thick black wire passes the flow to the busbars. Later on, circuits receive the electric power from the busbars.

There are two types of Busbars.
Neutral Busbars: These busbars are connected to the neutral wire of the main circuit. The bars offer a point of contact to white wires to supply the power to the breaker panel and the products. The electricity is sent back to the breaker panel after it is supplied to the outlets and the subsequent products.




Grounding Busbars: Grounding bar is connected to the breaker panels and the grounding conductor that rests underground. Many service panels connect the neutral busbars to the grounding busbars in some systems.




The knowledge about these components of a distribution panel will make you the electrical of your own house.
